2.5G PoE Switch

2.5G PoE Switch

2.5G PoE Switch

8 *2.5G POE powered ports

1*10G SFP+

The whole power is 120Weach port max. power supply reached 30W

The POE power supply ports support the priority mechanism.

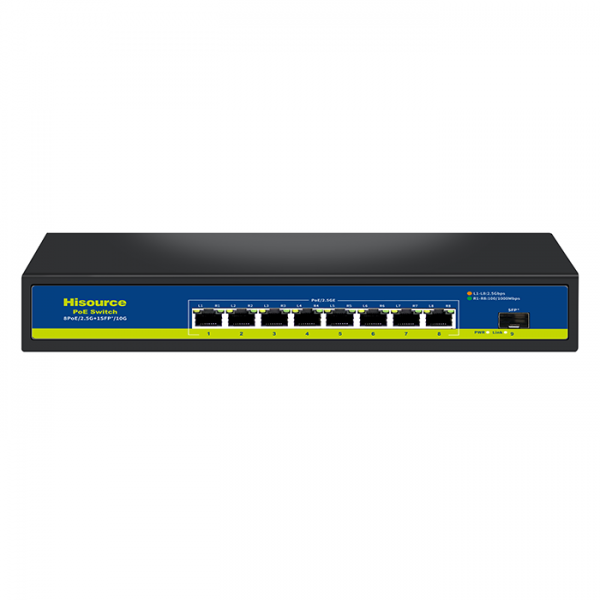

    Hi-K0801WB Ethernet PoE Switch provides 8*2.5G POE ports, 1*10Gb SFP+ optical port, connecting to various 2.5G devices can directly enjoy 2.5G high-speed transmission, adopting store-and-forward mechanism, integrating high-capacity internal cache to effectively reduce data forwarding delay, and all ports can realize non-blocking wire-speed forwarding.
    Excellent port performance:
    Provides 8*2.5G POE ports, meets 802.3af/at standard, and the maximum power of the whole machine is 120W.
    Each port supports MDI/MDIX auto-reversal and self-negotiation, IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.
    1 SFP+ optical port.
    Excellent PoE performance:
    8*2.5G ports support POE+ power supply to meet the needs of POE power supply for security monitoring, teleconferencing system, wireless coverage and other scenarios.
    Automatically recognizes PoE devices for power supply without damaging non-PoE devices.

    Network Standard

    IEEE 802.3IEEE 802.3uIEEE 802.3xIEEE802.3ab IEEE802.3bz

    Port

    8*2.5G PoE Port1*10G SFP+

    POE Power

    8*2.5G RJ45 port support POE+

    The whole power is 120W

    Each port max. power supply reached 30W



    POE Connection

    Both1/2+3/6- and 4/5+7/8-

    End-span

    Performance

    Store and forward

    MAC address table 4k

    Switching capacity 60Gbps



    Forwarding Rate

    10BASE-T:14880PPS/port

    100BASE-tx148800pps/port

    1000BASE-tx1488000pps/port

    10000BASE-tx14880000pps/port

    Port Function

    Power priority mechanism, fast and forward, MAC automatic

    learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode



    Environment

    Operating Temperature-10℃ - -55℃

    Power

    Built in power base board

    Input220V50HZOutputDC52V±5% 2.3A

    ≤120W

    Weight &Size

    1.95KG

    270mm×181mm×44mm(L×W×H)
